Type A2 AmbulanceEN 1789

Scheduled Collective Patient Transport

Designed and equipped for the transport of one or more patients who are not expected to be emergency cases, either on a stretcher or in a wheelchair. Depending on the capacity of the medical compartment, it can be equipped with four or five seats plus the stretcher, and up to four wheelchairs.

Custom Design

Flexible product development centered on customer needs.

Learn more

Production Capacity

Agility in project development and delivery times.

Learn more

After-Sales Service

Commitment throughout the service life of the ambulance.

Learn more
Type A2 ambulance for collective transport - exterior view Side view of collective transport ambulance Interior medical compartment with multi-seat configuration Stretcher and seating layout in Type A2 ambulance Wheelchair accessibility and securing system Rear access view for patient transport Comfortable seating for scheduled transport patients Internal lighting and air conditioning details Medical supplies storage and interior finishing

KEY FEATURES

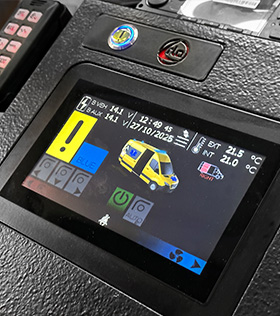

CARLA 4.0 Touch Control Interface
Cutting-Edge Technology
 CARLA 4.0 Touch Control The CAN BUS control system via touchscreens is a standard across all ambulance types. The cabin interface (7-inch) can be supplemented with one or more MMI controls (4.3-inch) in the medical compartment. The electronics are custom-programmed according to the specific features of each conversion. Discover CARLA 4.0
Versatile interior for scheduled transport
Maximum Versatility

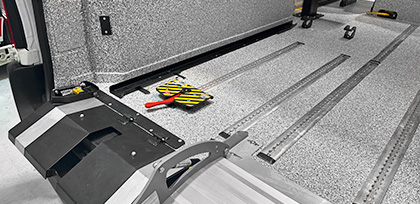

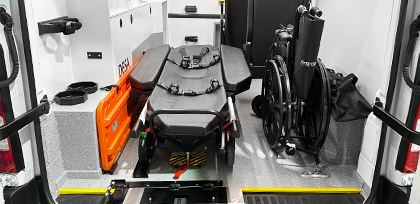

 Scheduled Transport The configuration of the medical compartment adapts to the needs of each service. With multiple options such as stretcher benches, loaders, or simple rails, the possibilities for wheelchair and seating layouts are highly diverse. RLA's engineering team develops optimal seating configurations that, combined with our wide range of seats, achieve a versatile and efficient solution.

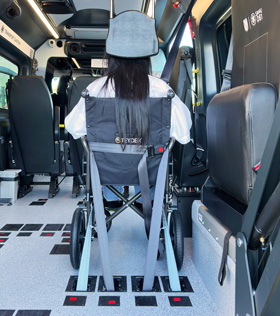

iWAV Integrated Wheelchair Anchorage System
Integrated Anchorages
 iWAV for Wheelchairs This system eliminates the need for mounting and dismounting wheelchair restraints and seatbelts on tracking. With iWAV, the anchors and retractors remain hidden in the floor, protected under a lid. This keeps the floor completely flat. The wheelchair securing process is much simpler and more efficient, while fixed positions ensure optimal geometry for safety. Learn more

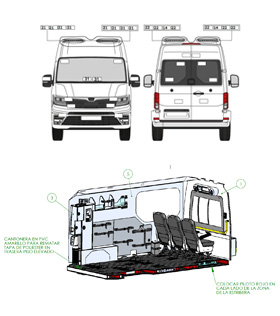

Bespoke Ambulance Design
Customized Solutions
 Bespoke Design For every individual project or large fleet prototype, a multidisciplinary engineering team is assigned. Together with the client, every detail of the ambulance is defined. Our R&D Departments, supported by extensive on-site machinery, allow us to develop and manufacture innovative solutions required by the specifications. RLA Facilities
Safety Certifications and Crash Tests
Safety as a Starting Point
 10G Crash Test To ensure patient and occupant safety, strategic structural reinforcements are applied to medical compartment components. Results are backed by 10G Crash Tests in all 5 directions as required by European Standard EN 1789. Certifications
Ambulance Thermal and Acoustic Insulation
Comfortable Patient Area
 Thermal and Acoustic Insulation The sanitary cell is fully insulated to improve interior thermal stability and optimize climate control. Additionally, the cabin remains free from external noise, staying below 77 dB(A) at 120 km/h as per European Standard EN 1789.

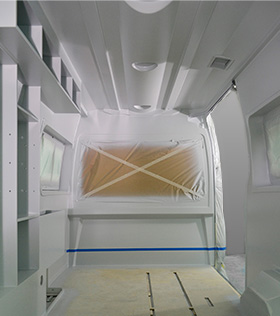

Reliable Antibacterial Materials
Reliable Materials
 Antibacterial, waterproof, and flame retardant To enhance safety, all interior materials are flame retardant according to ISO 3795:1989. The use of plastic boards or MDF along with the surface finish of the floor, furniture, and ceiling results in a waterproof structure that prevents pathogen accumulation.

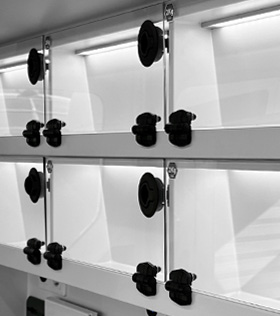

Seamless Lacquered Finish
Seamless Finish
 Full interior lacquering, joint sealing The interior lacquering applied to the entire furniture structure seals the joints and prevents liquid and particle filtration. Ambulance disinfection is much more effective and it is resistant to continuous cleaning. Learn More

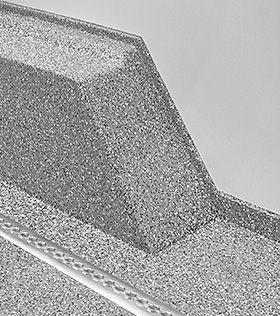

Waterproof Non-Slip Floor
Non-Slip Waterproof Technical Floor
 Sprayed epoxy coating Epoxy paint is sprayed over the entire floor up to a minimum baseboard height of 5 cm. This creates a watertight, non-slip ambulance base that is easy to disinfect. Learn more

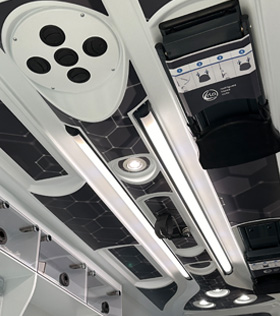

Ambulance Interior Direct Lighting
Direct Lighting
 Interior Ceiling LED bars along the ceiling illuminate the entire medical compartment. When required, these can be supplemented with adjustable spotlights in strategic positions. Patient compartment luminosity exceeds 200 lx and the color temperature is between 3,800 K and 4,300 K, following Standard EN 12464-1:2011. Learn more

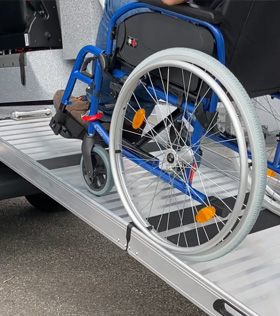

DUPLEX Double-Folding Ramp
DUPLEX Ramp
 Manual Double-Folding So lightweight it can be deployed and raised with one hand. Made of aluminum with a compact size, once stored it maximizes the interior space for wheelchairs. The non-slip surface and low approach angle allow for safe loading. Learn more

A WORLD OF POSSIBILITIES

Technical Data

MERCEDES-BENZ Sprinter, eSprinter
MAN TGE
VOLKSWAGEN Crafter
RENAULT / RENAULT TRUCKS Master, Master E-Tech
FORD Transit, E-Transit
PEUGEOT Boxer, E-Boxer
FIAT Ducato, E-Ducato
OPEL / VAUXHALL Movano, Movano Electric
IVECO Daily
Other Brands Inquire
Data Sheet Coming soon
