Type B AmbulanceEN 1789 · Basic Life Support (BLS)

Mobile Intensive Care Unit

Designed and equipped for the transport, basic treatment, and monitoring of patients, the regulatory requirements—which are less restrictive than those for Type C Ambulances—allow for more generous furniture and increased storage space.

Custom Design

Flexible product development centered on customer needs.

Learn more

Production Capacity

Agility in project development and delivery times.

Learn more

After-Sales Service

Commitment throughout the service life of the ambulance.

Learn more

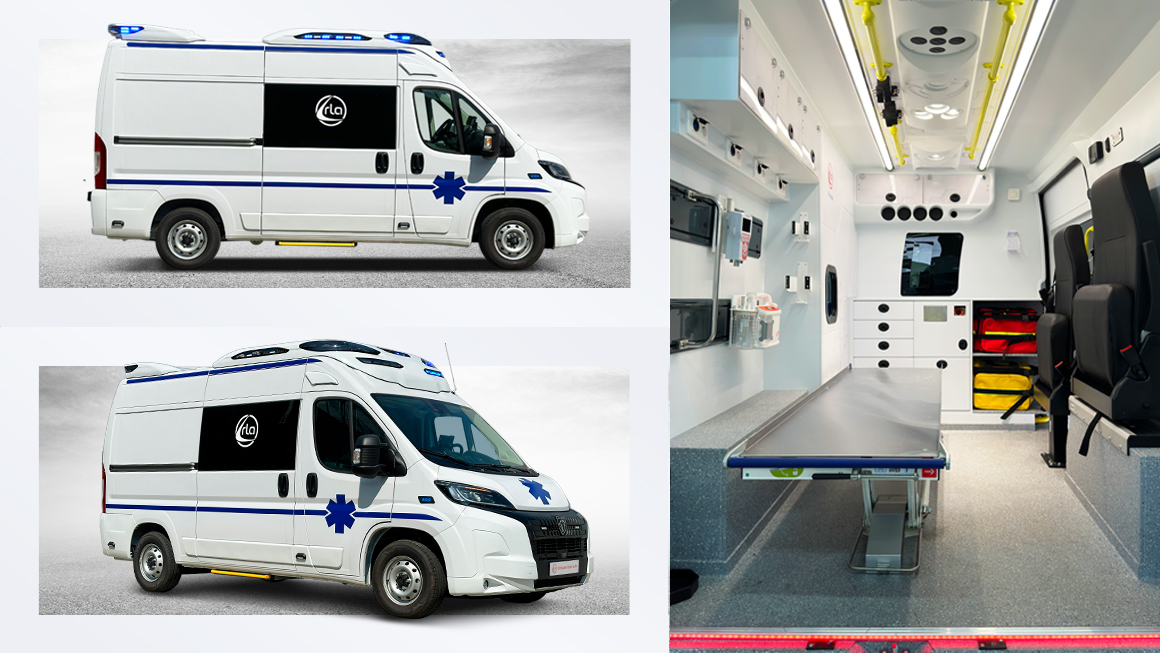

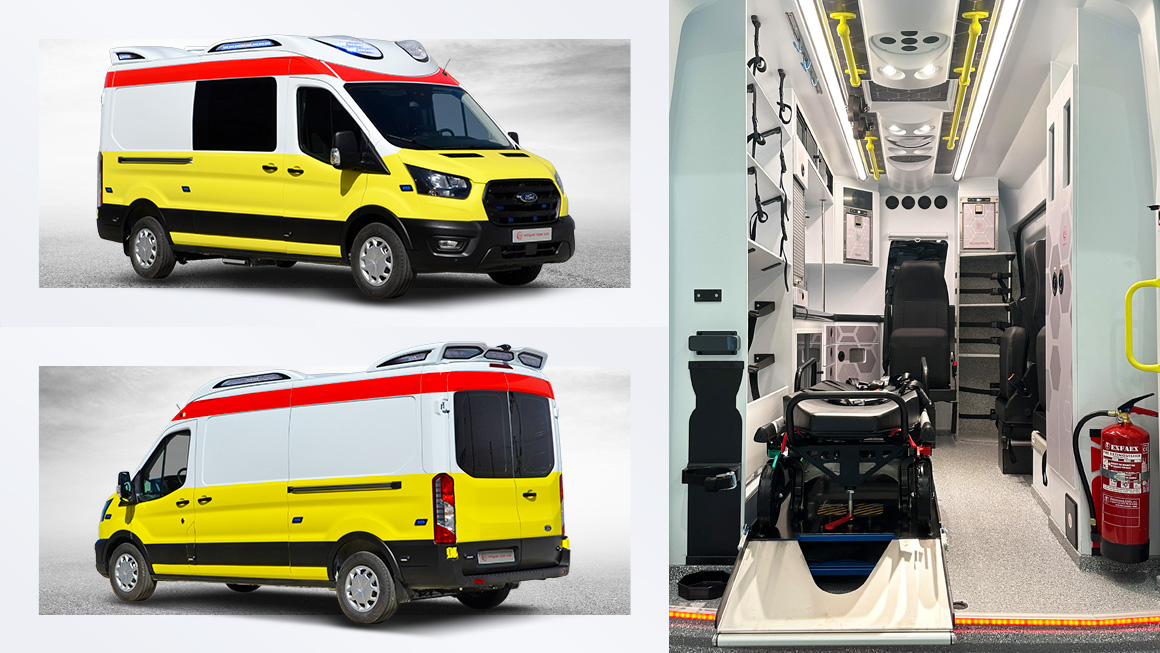

Type B ambulance exterior view 1 Type B ambulance exterior view 2 Type B ambulance medical compartment interior Ambulance side access and equipment layout Storage cabinets and medical supplies area Patient area lighting and ceiling details Rear view of ambulance with open doors Stretcher and loading system detail Advanced life support equipment integration

HIGHLIGHTED FEATURES

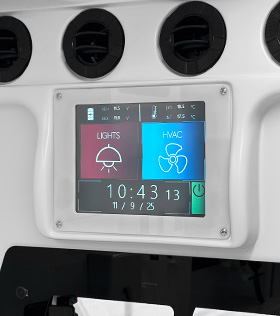

CARLA 4.0 tactile control system interface
Cutting-Edge Technology

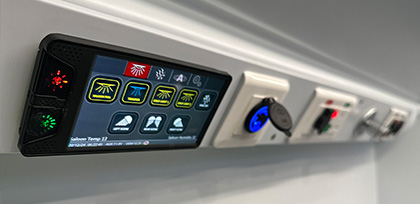

 CARLA 4.0 Touch Control The CAN BUS function control system via touch screens is a standard in all ambulance types. The cabin (7-inch) and patient area (10-inch) interfaces can be complemented with MMI controls (4.3-inch) in any location. The electronics are custom-programmed according to the specific characteristics of each conversion. Discover CARLA 4.0

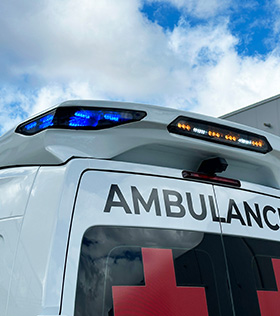

Next-generation emergency signaling systems RLAJ1
Next-Generation Emergency Signaling
 RLAJ1, RLAJ2 and RLAJ4 RLA offers a wide range of emergency light signaling solutions. RLAJ1 is the comprehensive solution that covers the entire ambulance roof. The front RLAJ4 and rear RLAJ2 modules can be used together or combined with lightbars or other systems. Discover RLAJ1

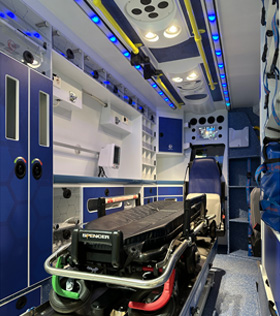

Type B ambulance furniture and storage layout
Type B Furniture

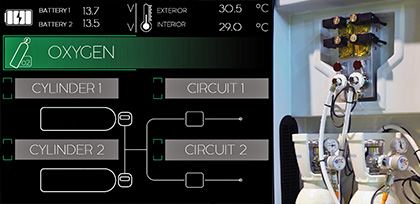

 EN 1789 Treatment Area The lower space restrictions around the stretcher in the EN 1789 Standard for Type B ambulances allow for a larger furniture volume, increasing the storage capacity for medical equipment. There is even sufficient space to locate the main oxygen cylinders in an interior cabinet instead of the side sliding door.

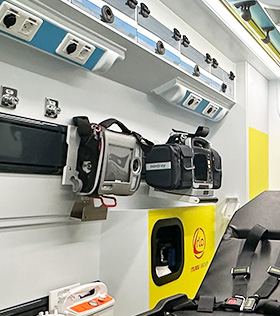

Electromedical equipment wall with rail supports
Electromedical Equipment Wall

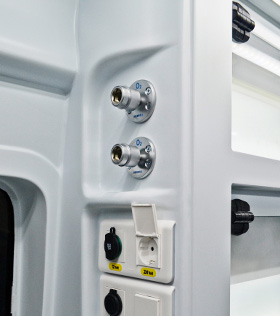

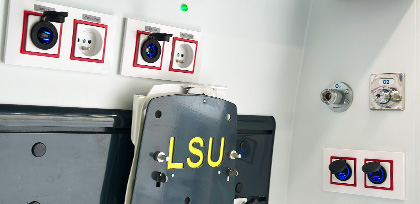

 Rail-Mounted Supports Electromedical devices are installed on sliding supports mounted on rails. This allows each element to be placed in the optimal position. The system accommodates original or custom-made supports by RLA. The rails are complemented by strategically located power and oxygen outlets, as well as LED lighting bars. Learn more
Engineering team working on custom ambulance design
Customized Solutions
 Bespoke Design A multidisciplinary team of engineers is assigned to every individual project or large fleet prototype. Every detail of the ambulance is defined jointly with the client. Our R&D Departments, supported by the extensive machinery available at our facilities, allow us to develop and manufacture the innovative solutions required by the specifications. RLA Facilities

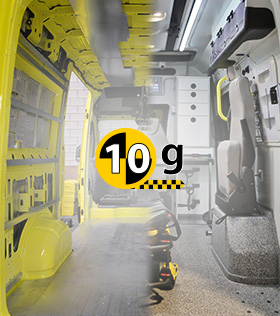

Ambulance structural 10G crash test verification
Safety as a Starting Point
 10G Crash Test To ensure the safety of the patient and occupants, strategic structural reinforcements are applied to the medical compartment components. The result is backed by 10G Crash Tests in 5 directions, as required by the European Standard EN 1789. Certifications

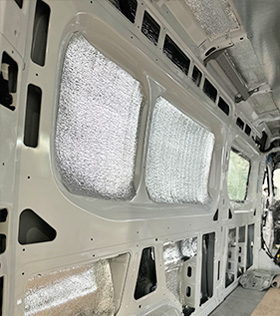

Thermal and acoustic insulation of the patient area
Comfortable Patient Area
 Thermal and Acoustic Insulation The sanitary cell is completely insulated to improve interior thermal stability and optimize climate control use. Additionally, the compartment remains free from external noise, staying below 77 dB(A) at 120 km/h, as specified by the European Standard EN 1789.

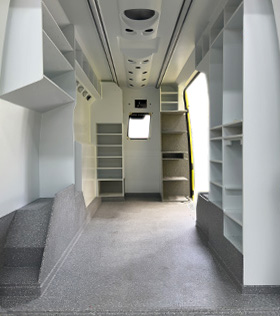

Antibacterial and flame retardant ambulance interior materials
Reliable Materials
 Antibacterial, waterproof, and flame retardant To enhance safety, all interior materials are flame retardant according to ISO 3795:1989. The use of plastic boards or MDF, combined with the interior surface finish of the floor, furniture, and ceiling, results in a waterproof structure that prevents the accumulation of pathogens.
Seamless lacquered finish for ambulance furniture
Seamless Finish
 Full interior lacquering, joint sealing The interior lacquering applied to the entire furniture structure seals the joints and prevents the filtration of liquids and small particles. Ambulance disinfection is much more effective and it is resistant to continuous cleaning. Learn More

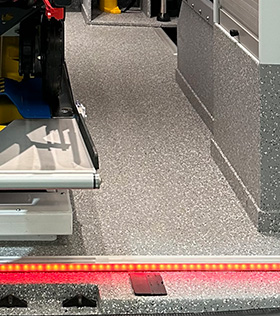

Non-slip waterproof technical flooring
Non-Slip Waterproof Technical Floor
 Sprayed epoxy coating Epoxy paint is sprayed over the entire floor up to a minimum baseboard height of 5 cm. This creates a watertight, non-slip ambulance base that is easy to disinfect. Learn more

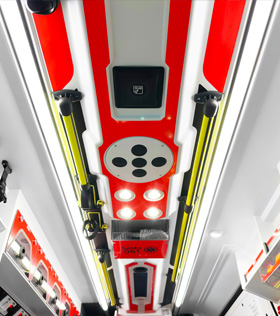

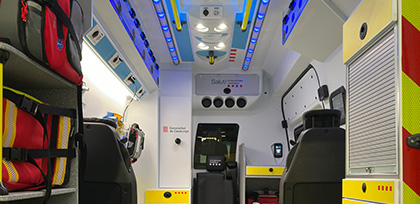

Direct LED lighting and adjustable spotlights
Direct Lighting
 Interior Ceiling LED bars along the entire ceiling provide illumination for the entire patient compartment. Adjustable cold-light ceiling spotlights focus on specific areas to assist technicians. The luminosity in the treatment area exceeds 1,650 lx and the color temperature ranges between 3,800 K and 4,300 K, following Standard EN 12464-1:2011. Learn more

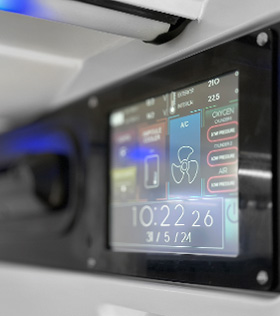

HVAC system for ambulances including air conditioning and heating
Climate Control for All Situations

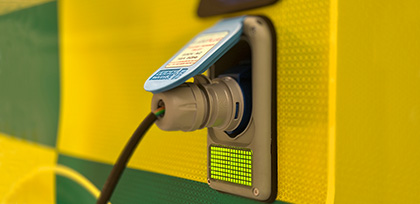

 Air Conditioning and Heating CARLA 4.0 efficiently manages the climate control system to automatically reach the selected temperature. Manual mode can be used for more precise ventilation flow. Other options are also available, such as diesel stationary heating or electric climate control when the ambulance is connected to the mains.

A WORLD OF POSSIBILITIES

Technical Data

MERCEDES-BENZ Sprinter
MAN TGE
VOLKSWAGEN Crafter
RENAULT / RENAULT TRUCKS Master
FORD Transit
PEUGEOT Boxer
FIAT Ducato
OPEL / VAUXHALL Movano
IVECO Daily
Other Brands Inquire
Technical Sheet Coming soon
