Chassis-Cab AmbulanceAluminum Profile Compact Box

LESS IS MORE

With dimensions slightly larger than an ambulance in van format, the design and manufacture of a box of a contained size on a cab chassis results in an agile ambulance in urban downtown, at the same time very spacious within the patient care cabin.

The box structure in aluminum profiles with thermal and acoustic insulation panels is mounted on a rear single-wheel chassis-cabin. With the RLAJ5 emergency signaling assembly integrated into the body, the total height does not exceed 2,630 mm in the case of the MAN TGE platform, while the length is 6,310 mm. With this compact exterior size, interior dimensions without bodywork of 3,410 x 1,960 x 2,050 mm (length x width x height) are achieved.

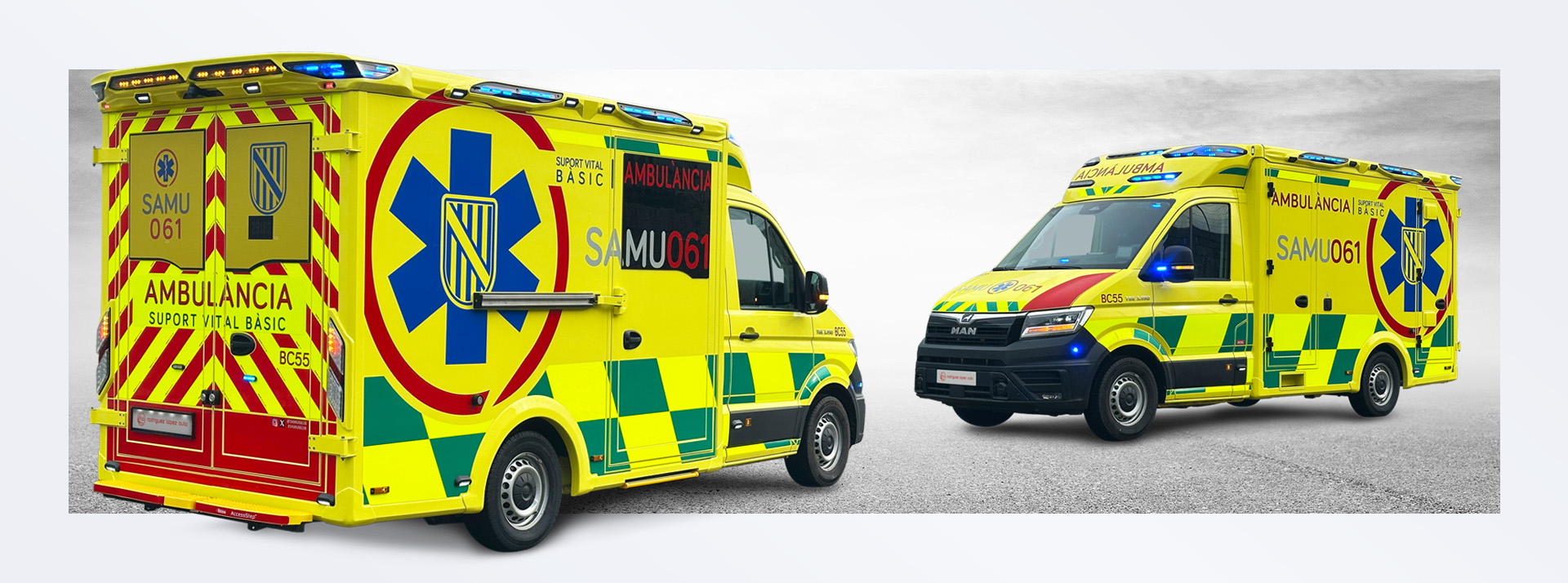

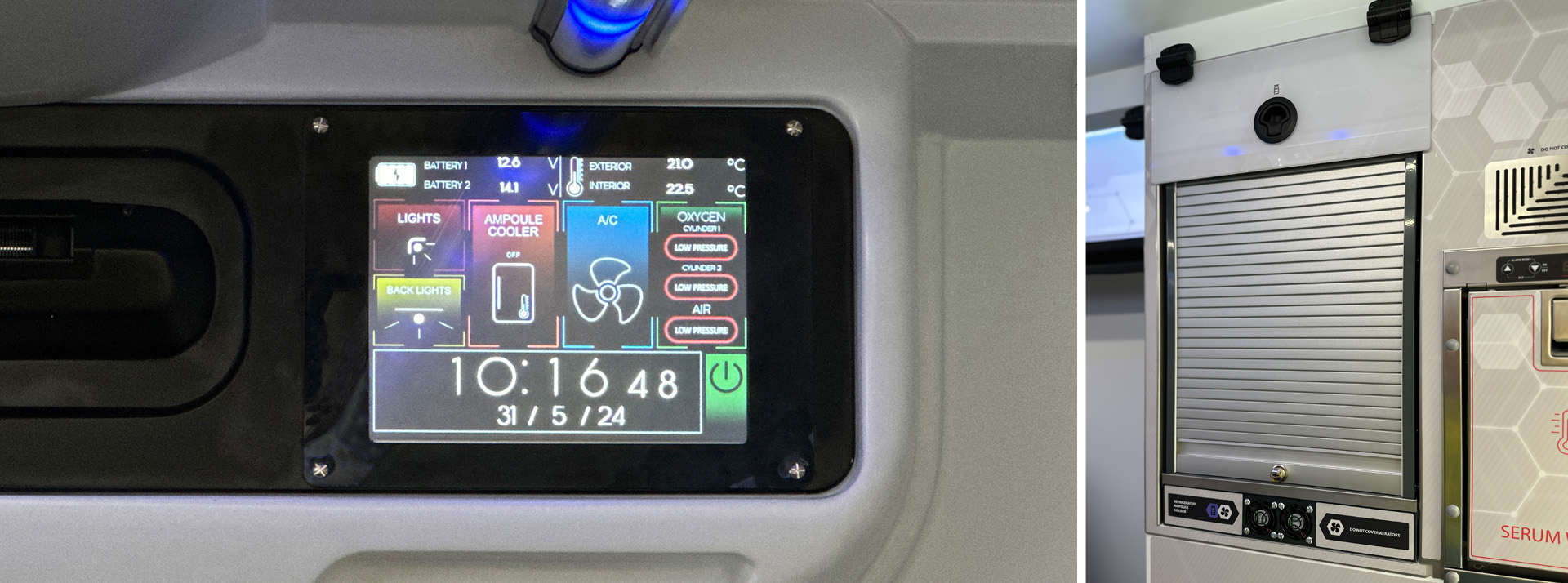

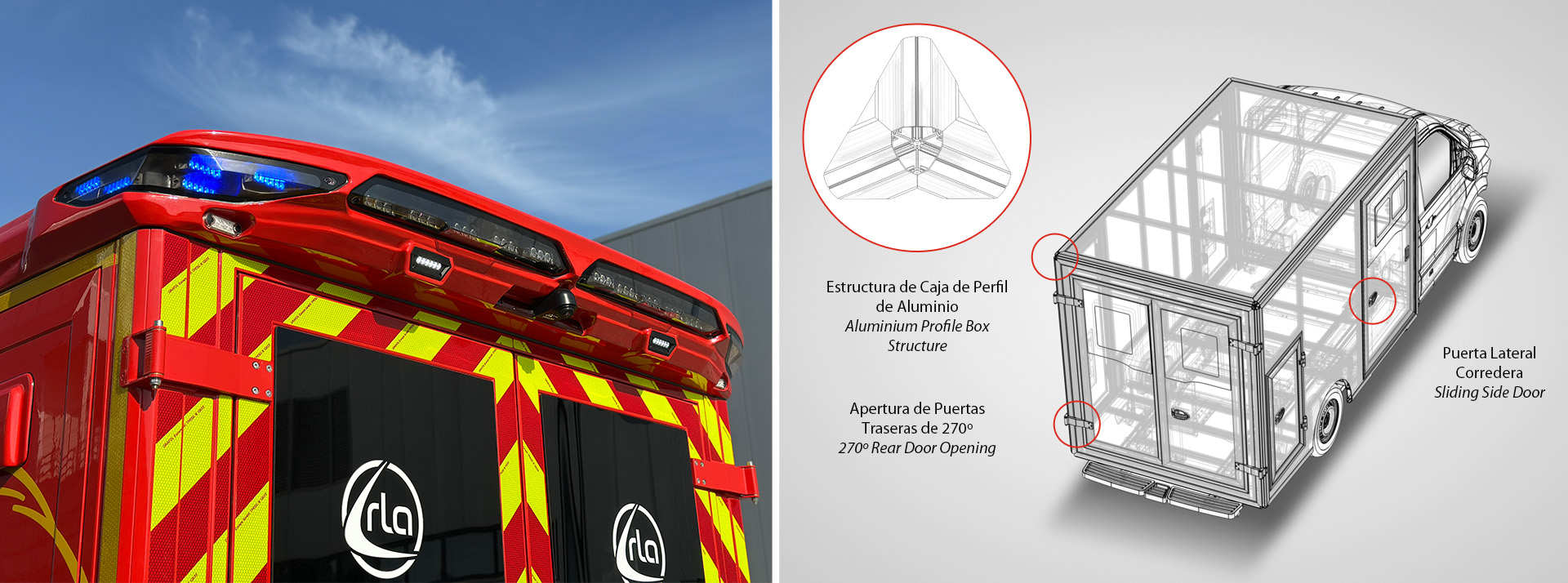

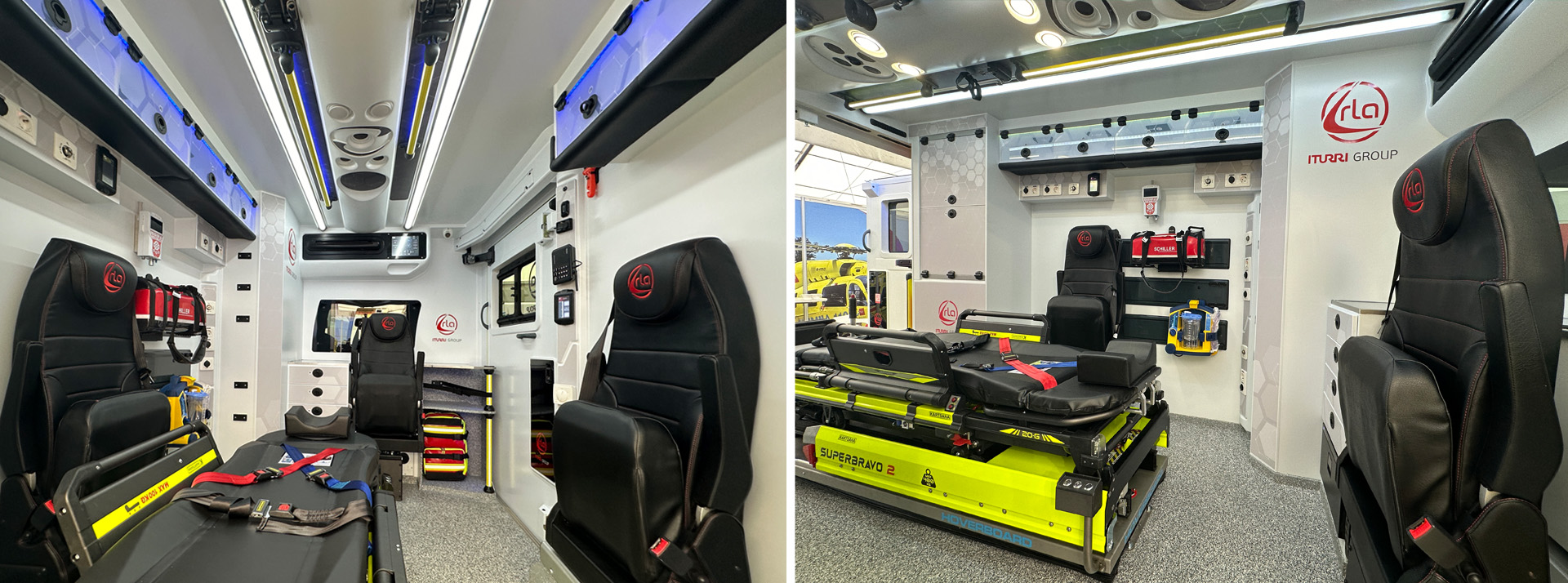

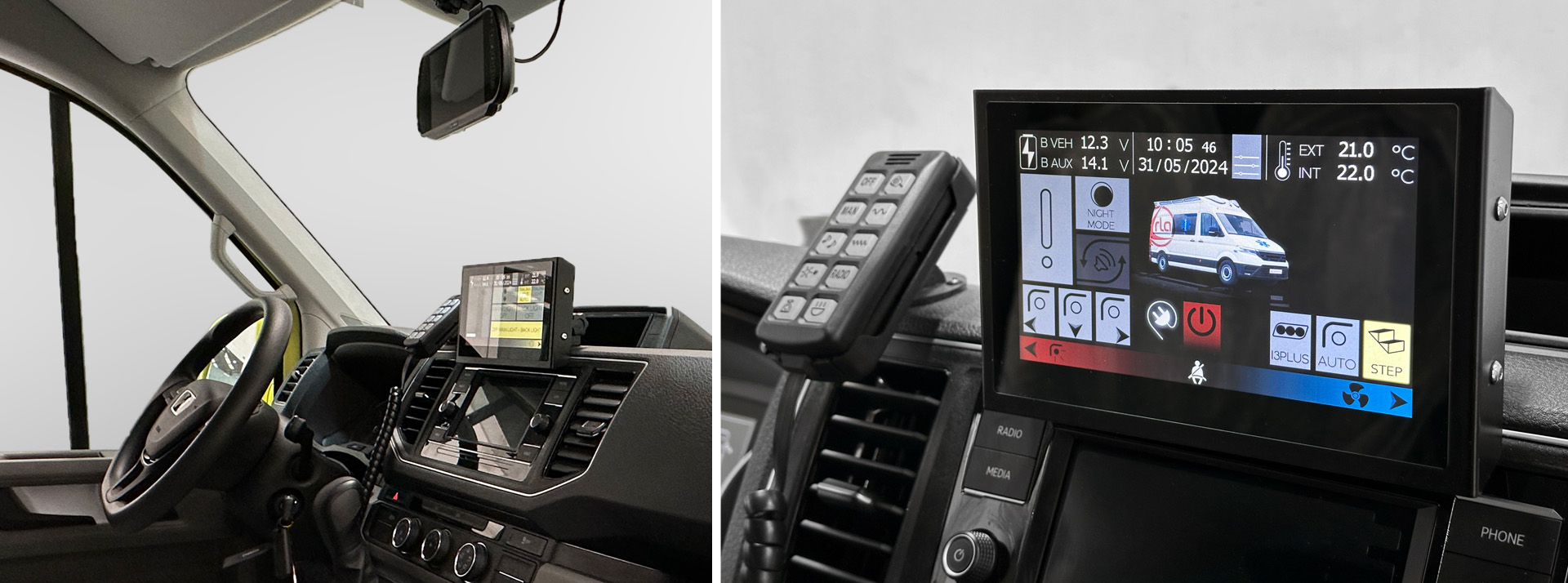

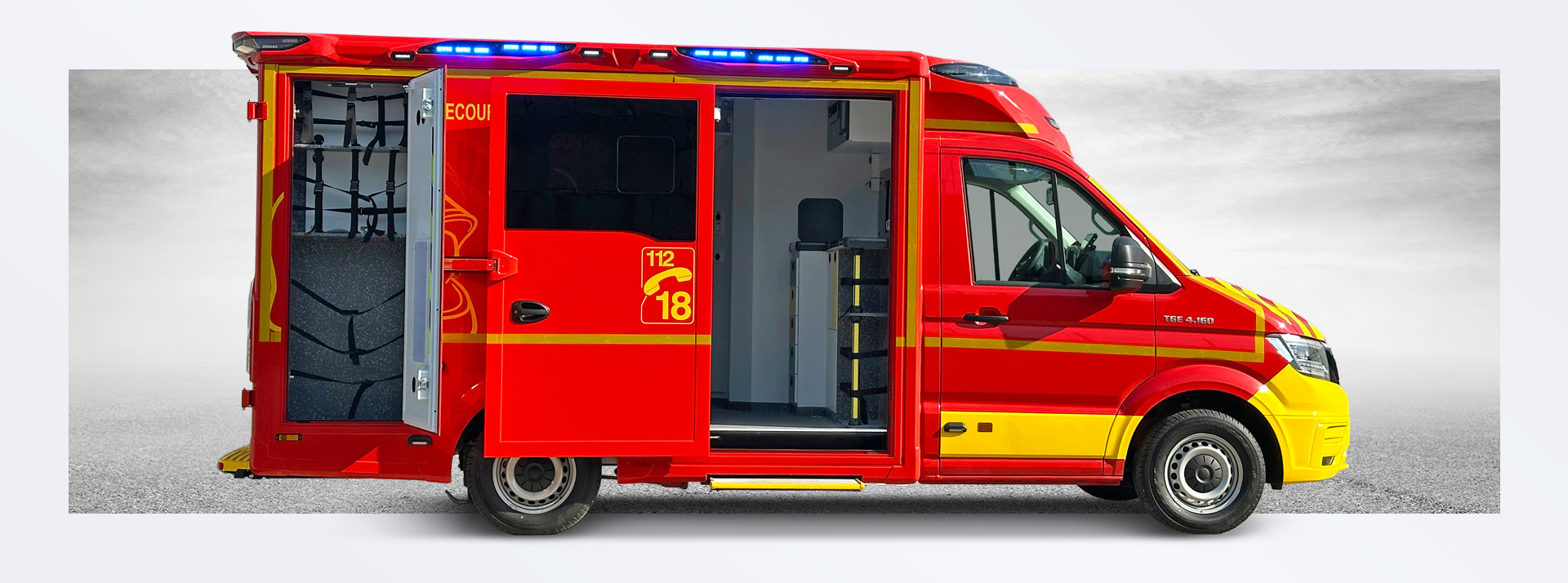

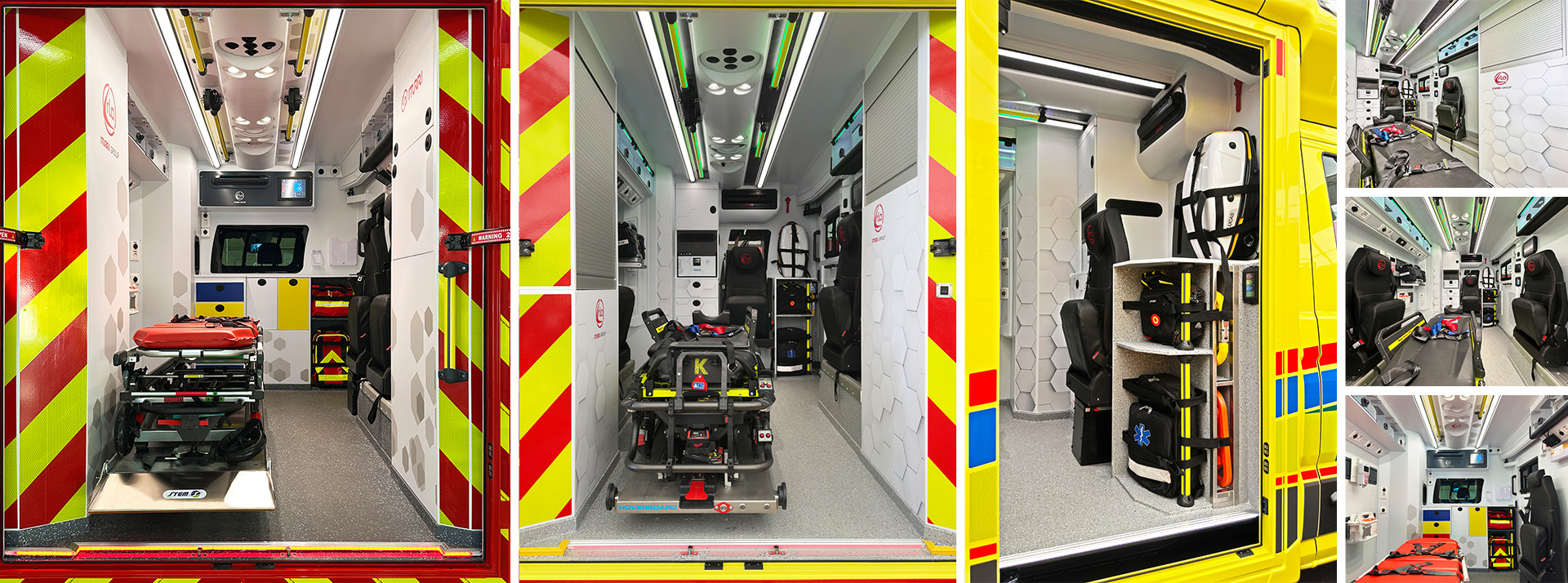

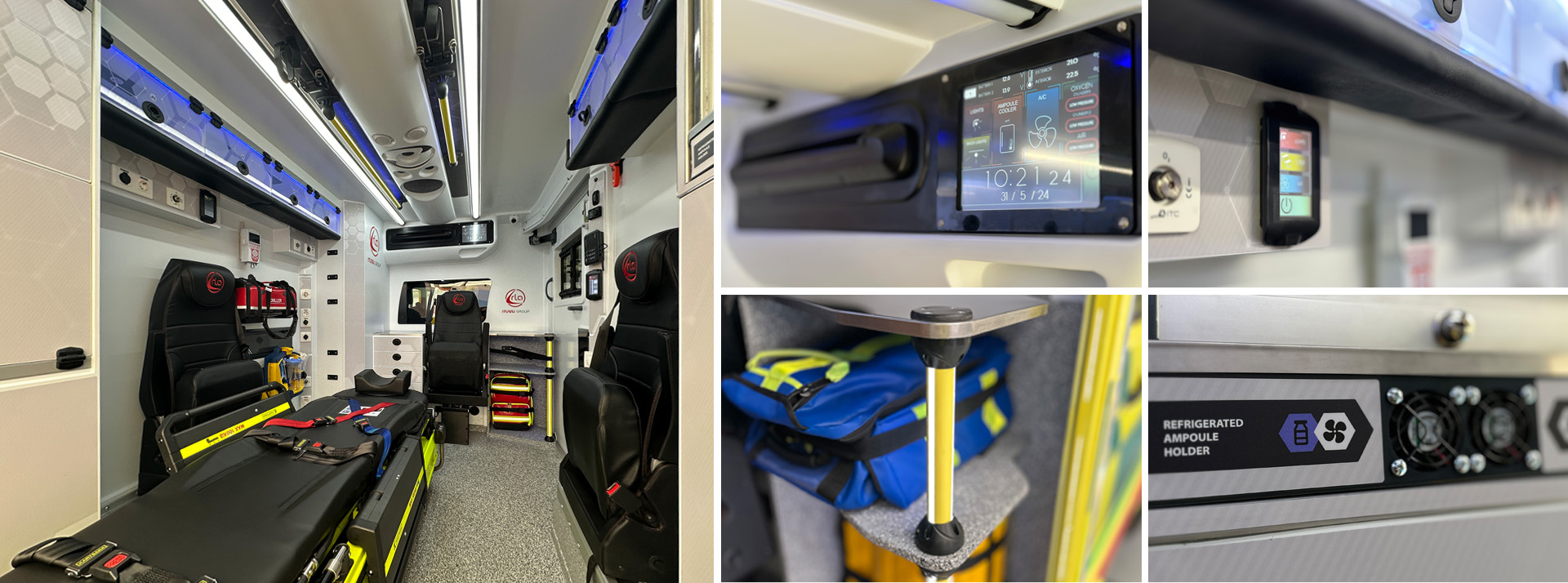

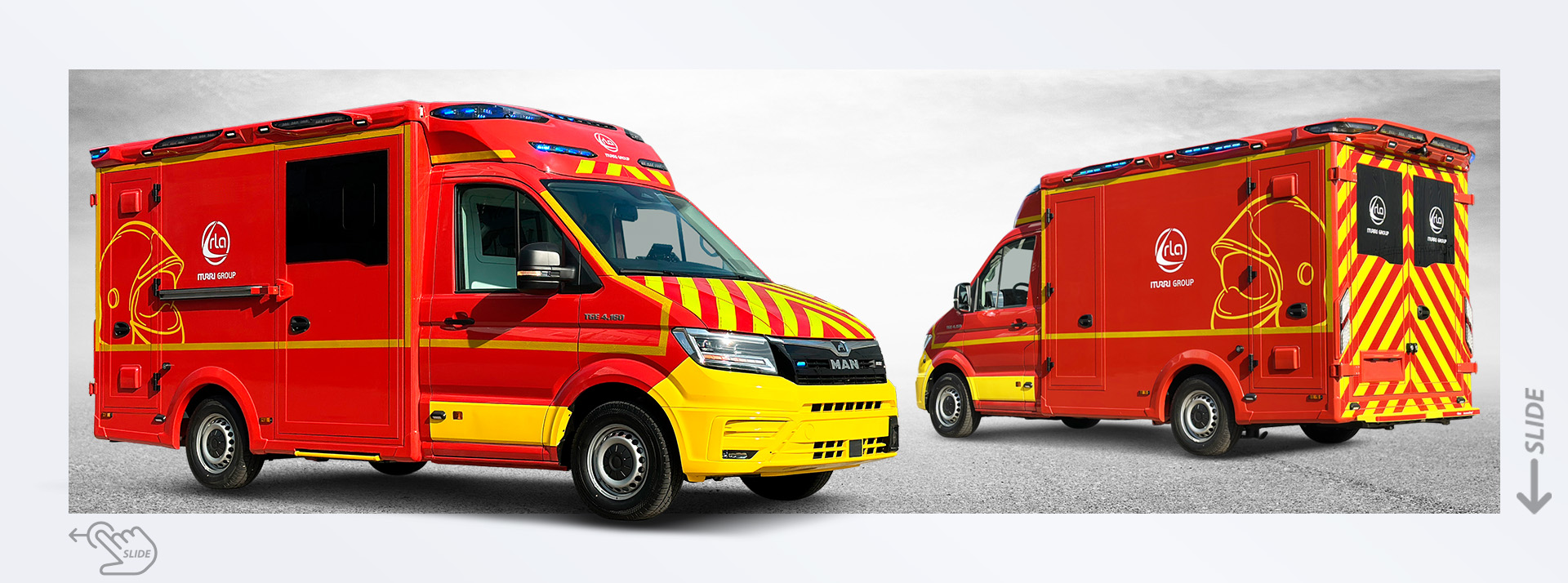

Type C / Type B EN 1789 Ambulance, Chassis-Cab plus Compact Box Red Firefighter Type C / Type B EN 1789 Ambulance, Chassis-Cab plus Compact Box Yellow Ambulance RLAJ5 aerodynamic emergency roof cap Integral aerodynamic design featuring an aluminum profile box structure, 270° opening rear doors, and a side sliding door External doors for rapid response equipment storage Customized interior furniture design Patient compartment with 3 seats plus stretcher. Sliding mounts for electromedical equipment Backlit shelves and grab handles with color selection via CARLA 4.0 touchscreens CARLA 4.0 10-inch main touchscreen for controlling ambulance functions. Refrigerated, removable ampoule holder controlled via CARLA CARLA 4.0 7-inch driver's cabin touchscreen

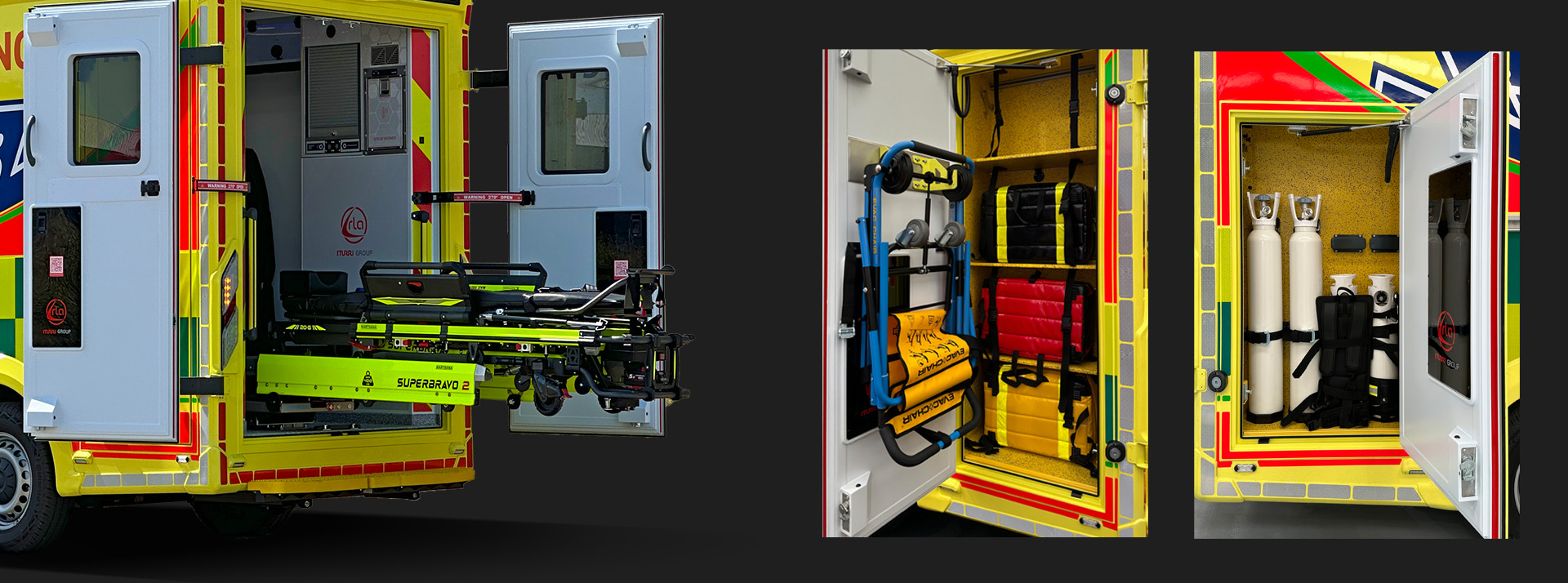

Access to the patient compartment is through a side sliding door and two rear doors that open up to 270º. The height from the interior floor to the ground is 570 mm, in addition to the pneumatic and adjustable suspension that facilitates loading the stretcher. The box has two large exterior doors for storing rapid intervention material, and an exterior door to house two 10L oxygen bottles and two 3L laptops with an Emergalia Oxiback backpack.

Advantages

  • Manufacture of the box in aluminum profile
  • Greater interior space for better care
  • Greater interior and exterior storage space
  • Side sliding door
  • Rear doors opening up to 270º
  • Adjustable pneumatic suspension for better comfort and ease of loading or unloading the stretcher
  • Low noise level and running vibrations
  • Integral aerodynamic design for lower consumption
  • Body-integrated emergency lighting and area lighting
  • Customizable CARLA 4.0 touch screen system for managing ambulance functions
  • Ambulance Type C or Type B according to European Standard EN 1789

Options

  • Custom interior design
  • Bench and stretcher with bariatric kito
  • Exterior doors for storage of rapid response equipment
  • Customizable emergency lighting
  • Aluminum grab bars with design for better grip and RGB LED lighting configurable through CARLA
  • Backlit furniture shelves and handles
  • Removable refrigerated ampoule holder

Datos Técnicos

Lenght 6.310 mm
Height 2.630 mm
Width 2.160 mm
Lenght 3.410 mm
Heighth 2.050 mm
Width 1.960 mm
Chassis-cab MAN TGE
Chassis-cab Volkswagen Crafter
Brochure EN 1789 Ambulance compact chassis-cab
